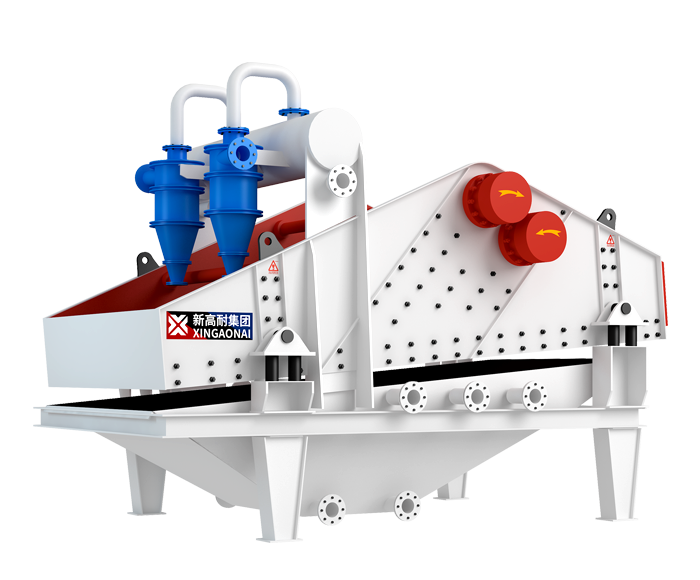

Fine Sand Recovery Machine

Get Price

80-280m³/h Feeding Size

50-220t/h Processing Capacity

PRODUCT INTRODUCTION

Xin Gaonai Group fine sand recovery machine can effectively reduce the loss of fine sand, control it within 5%-10%, and improve the quality of the mechanism of sand, which is a good solution to the high size of the finished sandy fineness in the artificial aggregate processing system,the problem of high stone powder content, it is widely applicable to mud purification, sand and gravel aggregate system, glass raw material processing system, artificial sand production line, and coal selection coarse clay recycling.

Applicable materials

Fine sand recovery machines are widely used in sand and gravel plants, mineral processing plants, hydropower stations, commercial mixing stations and other fields to recycle fine sand discharged from sand washing machines.

Scope of application

The fine sand recovery machine is suitable for cleaning, dehydrating and classifying various slurry materials.

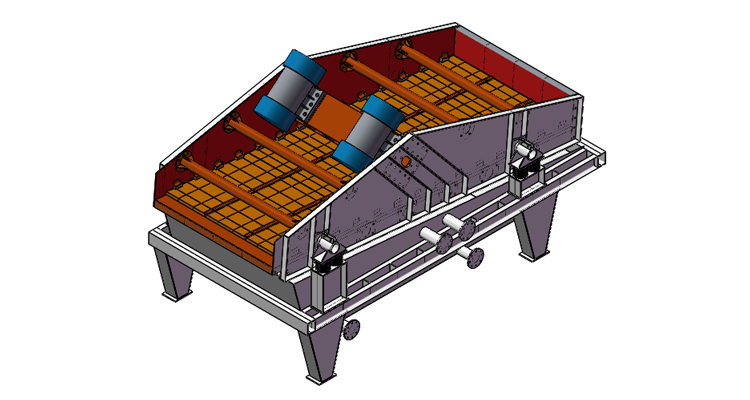

Internal Structure

It is mainly composed of motor, vacuum high -voltage pump, rotor, dehydration sieve, cleaning slot, and return box.

1、Not easy to blocking material

The vibrating screen adopts a polyurethane screen, which has a longer life than other types of screens and not easy to plug holes。

2、High purification recovery rate

To the maximum extent, it can recover the fine particulate materials accounting for 85% of the total discharge, and has the unparalleled technical and economic advantages of other equipment

3、Low cleaning costs

The fine particles are fully recovered, which reduces the workload of the sedimentation tank and reduces the cleaning cost of the sedimentation tank. It can be directly transported and supply the market

4、Long service life

The cyclone separator is lined with polyurethane, which improves the service life of the entire device and can smoothly complete the work of slurry concentration and liquid clarification;

WORKING PRINCIPLE

Use the slurry pump to drive the sewage to the cyclone for sediment separation，the tailings are then dehydrated through a dewatering screen to obtain high-quality tailings.

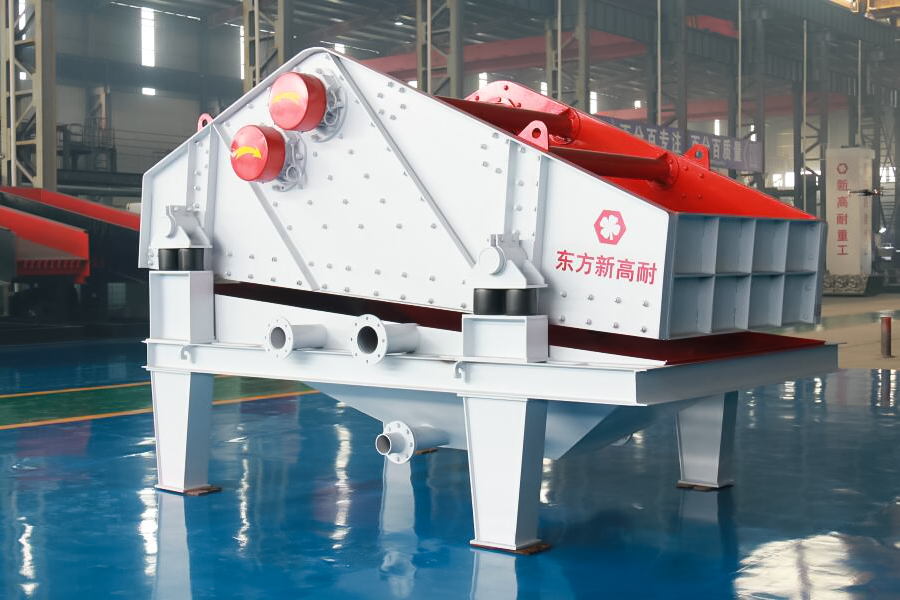

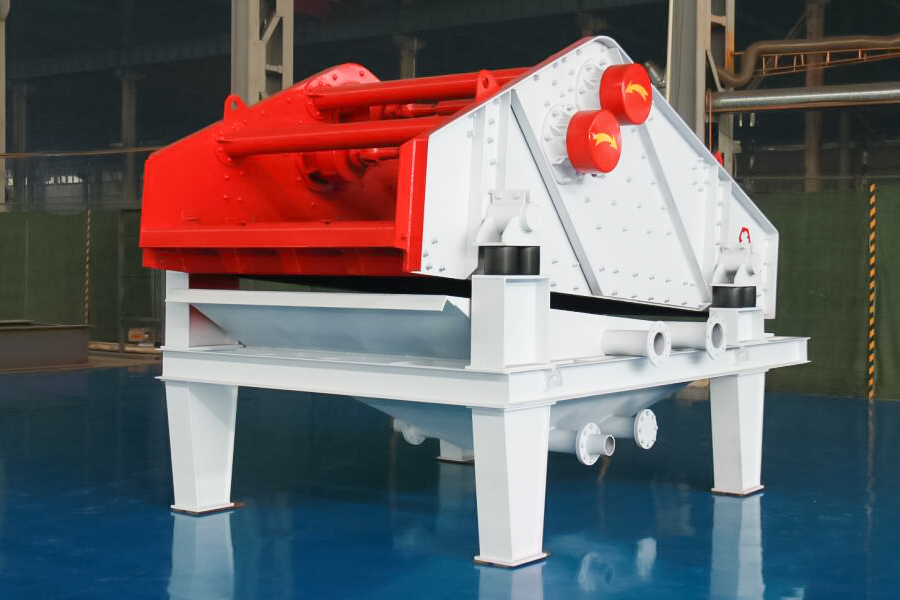

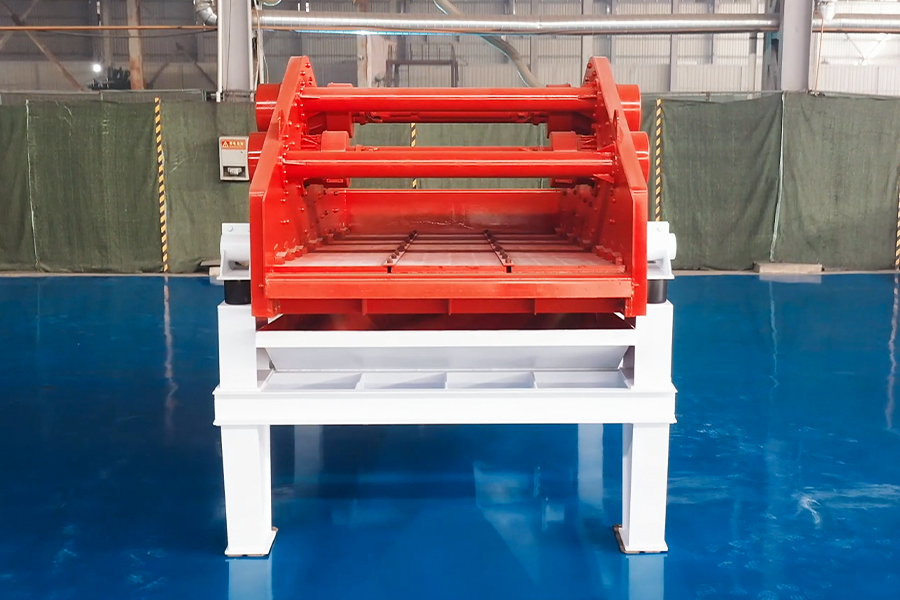

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	width*length(mm)	Screening machine power(kw)	Cyclone specification	Sand output(tph)	Treated water volume(m³/h)	Slurry pump power(kw)	Total power(kw)	Weight(kg)
XGN1224-35	1200*2400	2.2*2	350	50-80	80-120	18.5	23	2376
XGN1530-65	1200*3000	3*2	300*2	80-100	120-180	15*2	36	3745
XGN1840-75	1800*4000	5.5*2	350*2	100-140	160-240	18.5*2	48	5350
XGN2050-100	2000*5000	11*2	250*4	120-160	200-280	18.5*2	59	6736
XGN2250-100	2250*5000	11*2	250*4	150-220	200-280	22*2	66	7850
