The ZG series vibrating feeder is used in the production process to uniformly, continuously or quantitatively transport bulk,granular and powdery materials from the storage bin or hopper to the receiving equipment. When production needs, the materials can be pre-treated. Screening, powdery and small materials are automatically discharged from the gap.
Applicable materials:Vibrating feeder is suitable for the continuous and uniform transportation of various block, granular and powdery materials such as limestone, iron ore, copper ore, and granite.
Scope of application:Vibrating feeder is a feeding equipment with advanced economic and technical indicators,it is widely used in the combined crushing and screening operations of sand and gravel yards, building materials, metallurgy, abrasives and other industries.

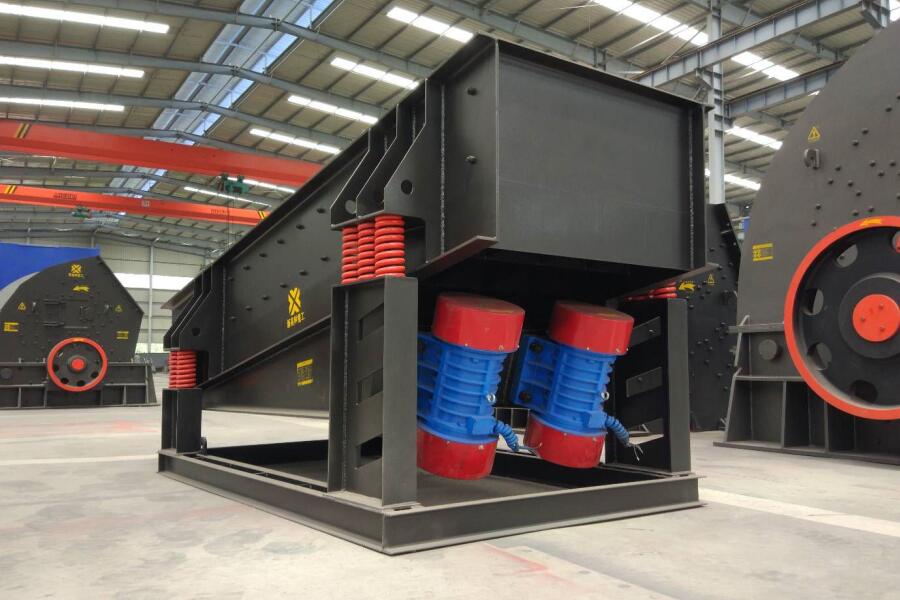

Internal Structure:It is mainly composed of the feed groove, the excitement, the spring, the spring support, and the vibration motor.
ZGCW1228,ZGCW1528,ZGXG1220
Best selling machine model

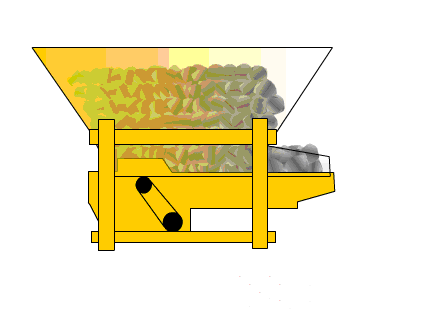

Use vibration motor to give vibration power, due to the cyclical re -vibration of the feed groove, when the grooves are vibrated vertically, the acceleration is greater than the acceleration of gravity,the material jumps forward and forward along the parabolic line, due to the continuous vibration of the vibration motor, the grooves are constantly vibrating, and the materials in the material grooves continue to jump forward, so as to achieve the purpose of the material.
Model | Trough Size (mm) | Feed size (mm) | Capacity (tph) | Motor model | Motor power (kw) |
---|---|---|---|---|---|
ZGCX0938 | 900*3800 | ≤500 | 150-200 | YZU-40-6 | 3.7*2 |
ZGCX1038 | 1000*3800 | ≤700 | 160-210 | YZU-40-6 | 3.7*2 |
ZGCX1238 | 1200*3800 | ≤750 | 250-380 | YZU-65-6 | 4.2*2 |
ZGCX1250 | 1200*5000 | ≤750 | 250-380 | YZU-100-6 | 7.5*2 |
ZGCX1538 | 1500*3800 | ≤1000 | 400-500 | YZU-85-6 | 5.5*2 |
ZGCX1550 | 1500*5000 | ≤1000 | 400-600 | YZU-120-6 | 10*2 |
ZGCX2038 | 2000*3800 | ≤1200 | 500-800 | YZU-120-6 | 10*2 |
ZGCX2050 | 2000*5000 | ≤1200 | 800-1200 | Y180L-6 | 15*2 |
ZGCX2560 | 2500*6000 | ≤1600 | 2000-3000 | YE2-250M-6 | 37*2 |
ZGCW0928 | 850*2800 | ≤500 | 80-120 | YZU-40-6 | 3*2 |
ZGCW1028 | 1000*2800 | ≤600 | 150-200 | YZU-40-6 | 3*2 |
ZGCW1228 | 1200*2800 | ≤700 | 220-300 | YZU-50-6 | 3.7*2 |
ZGCW1328 | 1255*2800 | ≤750 | 250-300 | YZU-50-6 | 3.7*2 |
ZGCW1428 | 1350*2800 | ≤800 | 260-320 | YZU-75-6 | 5.5*2 |
ZGCW1528 | 1500*2800 | ≤1000 | 300-400 | YZU-75-6 | 5.5*2 |
ZGCW2028 | 2000*2800 | ≤1200 | 500-800 | YZU-100-6 | 7.5*2 |
ZGXG1020 | 1000*2000 | ≤200 | 150-250 | YZH-20-6 | 1.5*2 |
ZGXG1220 | 1200*2000 | ≤200 | 250-350 | YZH-30-6 | 2.2*2 |
ZGXG1420 | 1400*2000 | ≤200 | 400-600 | YZU-30-6 | 3*2 |
