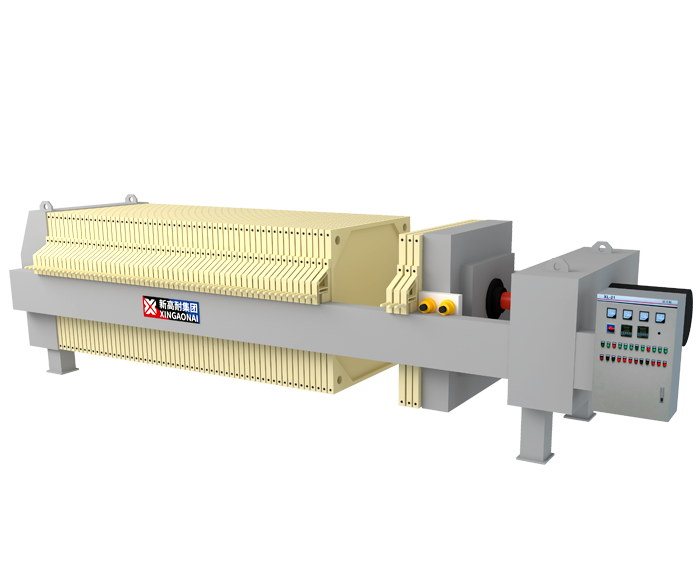

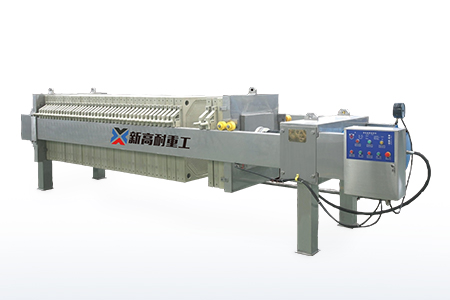

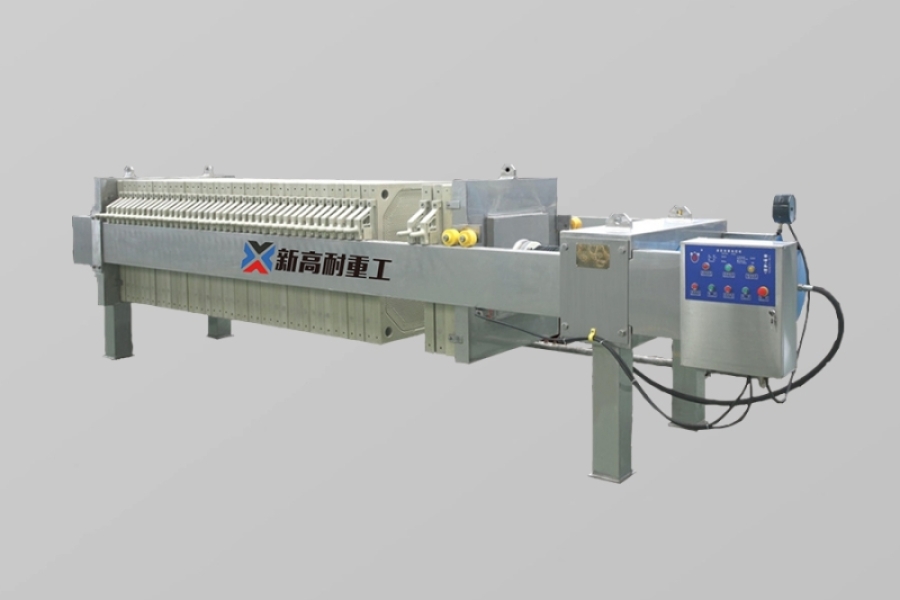

Plate and Frame Filter Press_Auxiliary Equipment

The plate and frame filter press is a fully automatic filter press equipment newly developed by our group with fast feeding and fast pulling plate unloading，it is suitable for operations that require solid-liquid separation, especially for users with high requirements for processing capacity and filtration accuracy.

Applicable materials

Plate and frame filter press is suitable for various suspension filtration and solid-liquid separation operations such as non-ferrous metal flotation, industrial sewage treatment and purification, coal washing, volatile liquid filtration, etc.

Scope of application

Plate and frame filter presses are widely used by users in mining, mineral processing, municipal sewage treatment, chemical industry and other fields who have high requirements for processing capacity and filtration accuracy.

Internal Structure

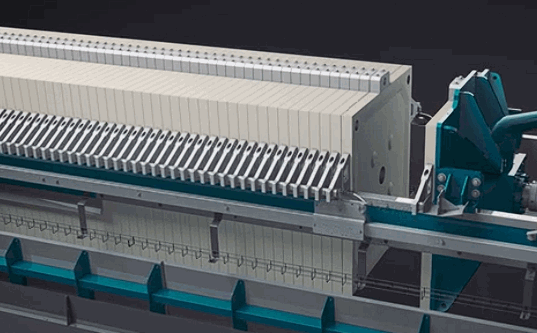

It is mainly composed of components such as tail plates, filter frame, filter plate, main beams, headboards and pressure devices.

1、Feeding and unloading speed is fast

Double-end large-diameter feeding, fast and uniform feeding; filter plate components are opened and closed in groups, automatic unloading, and the return time is short.

2、Large production capacity

The working cycle per hour is more than 6, the output of a single machine is increased by 1-1.5 times, and the performance is much higher than that of ordinary filter presses.

3、High degree of automation

Equipped with a program automatic control system, it can automatically control each process of the filter press and reduce manual operations.

4、Low moisture content of filter cake

The embedded diaphragm squeezes the filter cake to achieve the moisture content of the filter cake <6%, and the moisture content of the mineral filter cake is about 18%.

5、Parameters are adjustable and more durable

The opening speed, pulling force, the number of feeding ports, and the discharging gap can all be adjusted, and the normal service life can reach more than 50,000 times.

Working principle: using the pressure difference on both sides of the filter cloth, most of the water in the material is forced to pass through the filter cloth and flow out of the body, while the material is blocked in the filter chamber to form a filter cake to achieve the purpose of filtration.
