XCS Series Single Cylinder Hydraulic Cone Crusher

Get Price

≤560mm Feeding Size

78-1050t/h Processing Capacity

PRODUCT INTRODUCTION

XCS series single-cylinder hydraulic cone crusher integrates mechanical, hydraulic, automation, intelligent control and other technologies. It is suitable for medium and fine crushing of medium-hard materials. It has simple and reliable structure, low failure rate, low production cost and strong operation stability. With the advantages of easy maintenance, it is widely used in metallurgy, construction, hydropower, transportation, building materials and other industrial fields.

Applicable materials

river pebble, granite, basalt, iron ore, quartzite and other medium-hard hard rocks.

Scope of application

sand and gravel crushing, mine crushing, building stone crushing, chemical production, roadbed construction, infrastructure construction, etc.

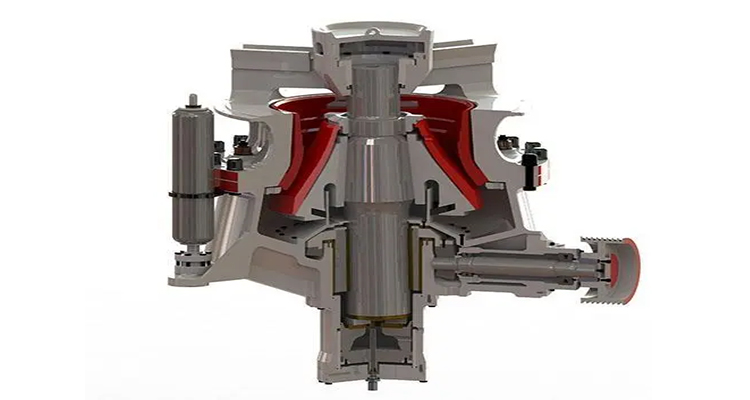

Internal Structure

Structural optimization

The utilization rate of wearing parts is high, and the main shaft can withstand greater crushing force and greater stroke. High-strength cast steel frame, alloy material spindle.

Integrated design

The integrated design of hydraulic lubrication realizes overload protection and hydraulic adjustment, and is convenient for maintenance.

Lifting cone

The moving cone can be raised and lowered by a single hydraulic cylinder, which can realize various functions such as adjustment of the discharge opening, cleaning, overload protection, etc. The medium and fine crushing of various cavity types can be realized only by replacing the fixed cone.

High productivity

The special crushing cavity has a large processing capacity, which ensures that the crushing effect is not affected by the wear of the liner while the lamination crushing efficiency is high.

WORKING PRINCIPLE

Working principle of single-cylinder hydraulic cone crusher The motor drives the small bevel gear to rotate through the motor wheel, belt and pulley, and the small bevel gear drives the large bevel gear to rotate to make the eccentric sleeve rotate. At this time, the main shaft drive cone installed in the eccentric sleeve moves with the rotation of the eccentric sleeve, so that the crushing wall is sometimes close to and sometimes away from the rolling wall, so as to achieve the purpose of crushing materials.

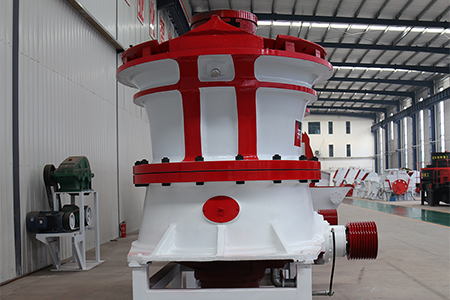

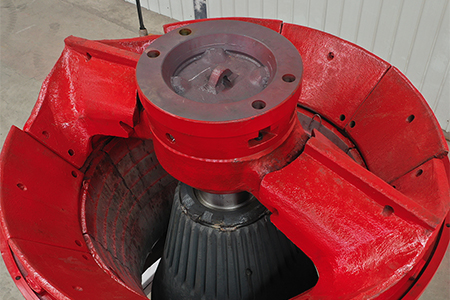

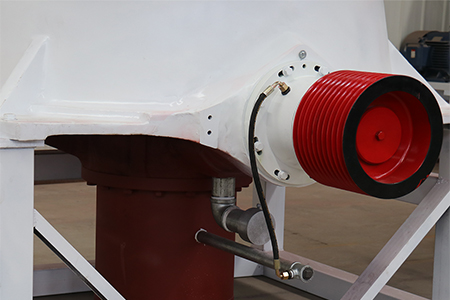

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Type	Max feeding port (mm)	Min feeding port (mm)	Power (kw)	Capacity (tph)
XCS420	EC	240	120	90	88-128
XCS420	C	200	130	90	78-118
XCS430	EC	360	180	150	126-344
	C	300	150		108-301
	MC	235	80		91-275
XCS440	EC	450	180	250	267-601
	C	400	150		225-511
	MC	300	80		195-486
XCS660	EC	560	220	315	349-1050
XCS660	C	500	150	315	318-892
