X Series Gyratory Crusher

X Series Gyratory Crusher

X Series Gyratory Crusher
Feeding Size
≤1600mm Feeding Size
Processing Capacity
310-3200t/h Processing Capacity

PRODUCT INTRODUCTION

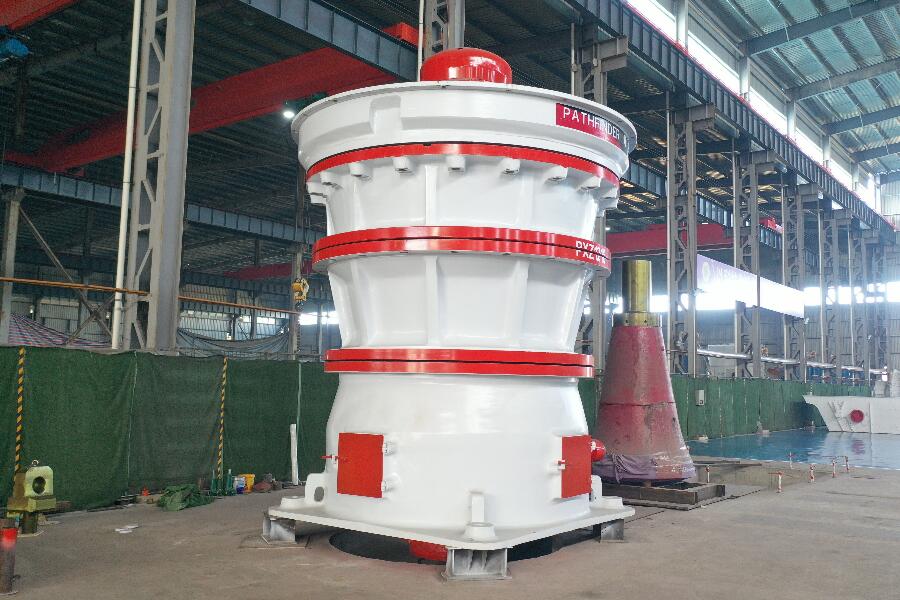

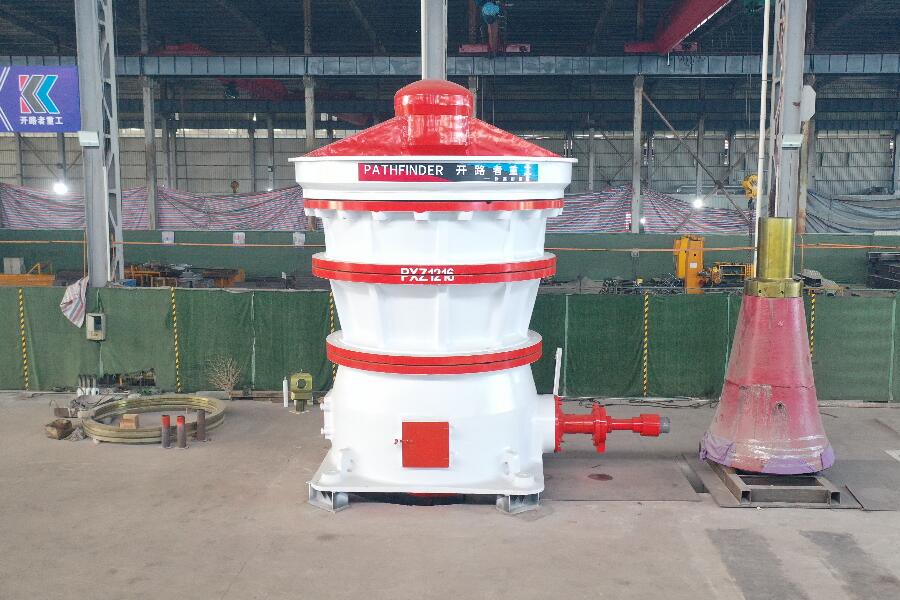

X series gyratory crusher is a new generation of primary crushing equipment developed by our group for ultra-large mining and quarrying projects. It integrates mechanical, hydraulic, electrical, automation, intelligent control and other technologies,the crushing process is carried out continuously along the ring-shaped crushing cavity, which has the characteristics of high productivity and good crushing effect. It is a new type of coarse crushing equipment that can provide users with intelligent and super-capacity solutions.


Applicable materials:It can be used for coarse crushing of granite, basalt, limestone, iron ore, lithium ore and other materials, and it can crush both soft and hard rocks.

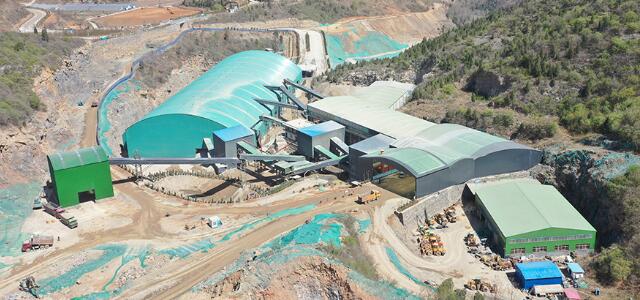

Scope of application:Widely used in primary crushing of ores and rocks in mining, building materials, metallurgy and other fields.

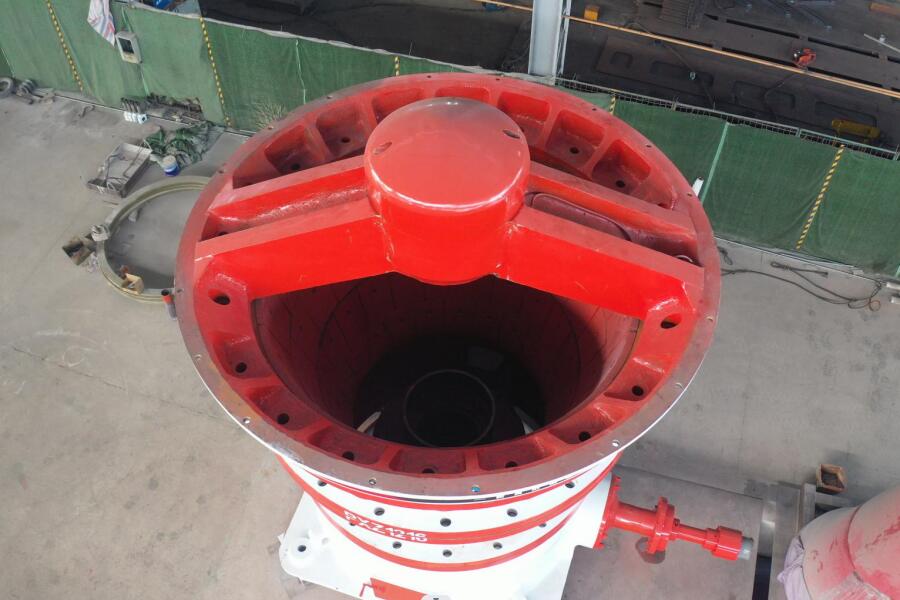

Internal Structure:It is mainly composed of components such as beams, eccentric sleeves, spindles, upper and lower racks, and hydraulic cylinders.

X0909,X1216,X1422,X1623,X1618

Best selling machine model

FEATURES

1、Large production capacity High crushing efficiency

Large inclination crushing cavity and long crushing surface, together give the crusher a higher crushing capacity,continuous high-intensity operation, the output can reach 3200t/h.

2、Long service life Low crushing cost

Super heavy-duty frame, integral heavy-duty main shaft, high-performance bearings and positive pressure dust-proof seal, the whole machine is more stable and durable.

3、Reasonable design Controllable particle size

Reasonable design, simple parts replacement and maintenance;Automatic spindle control system can compensate for liner wear and control product particle size.

4、Real time monitoring Intelligent production

The automatic control system can control every link of crushing,monitoring and diagnosing operational failures throughout the day,and record production information and crusher performance.

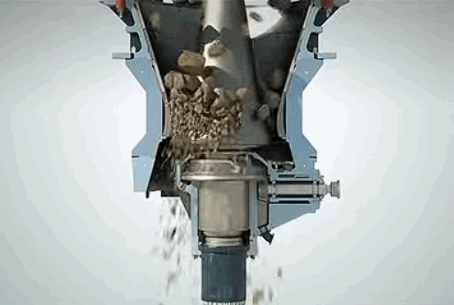

Use the rotation movement of the crushed cone in the shell cone to squeeze, split, and bending materials to crush ore or rocks of various hardness, the crushing cavity is a circular space formed between the crushing cone and the fixed cone,at any moment, some materials are crushed, and the part of the part opposite it is discharged downward at the same time, which is a continuous working system.

X Series Gyratory Crusher WORKING PRINCIPLE
Model

Feeding port size

(mm)

Discharge size

(mm)

Larger feeding size

(mm)

Adjustment range

(mm)

Capacity

(tph)

X0710700100580100-130310-400
X09099009075090-120380-510
X0913900130750130-160625-770
X0917900170750170-190815-910
X121612001601000160-1901250-1480
X122112002101000210-2301560-1720
X141714001701200170-2001750-2060
X142214002201200210-2302160-2370
X161816001801350180-2102400-2800
X162316002301350210-2402800-3200
Model

Bottom diameter

(mm)

Total weight

(t)

Motor power

(kw)

Motor RPM

(r/min)

Lubrication station specification

(l/min)

Remark
X0710140091.2145/15573040
X0909165014121073563
X0913165014121073563
X0917165014121073563
X12162000228.2310590125
X1221
X14172200309430590125
X1422
X16182500481310*2590125Dual drive
X1623
