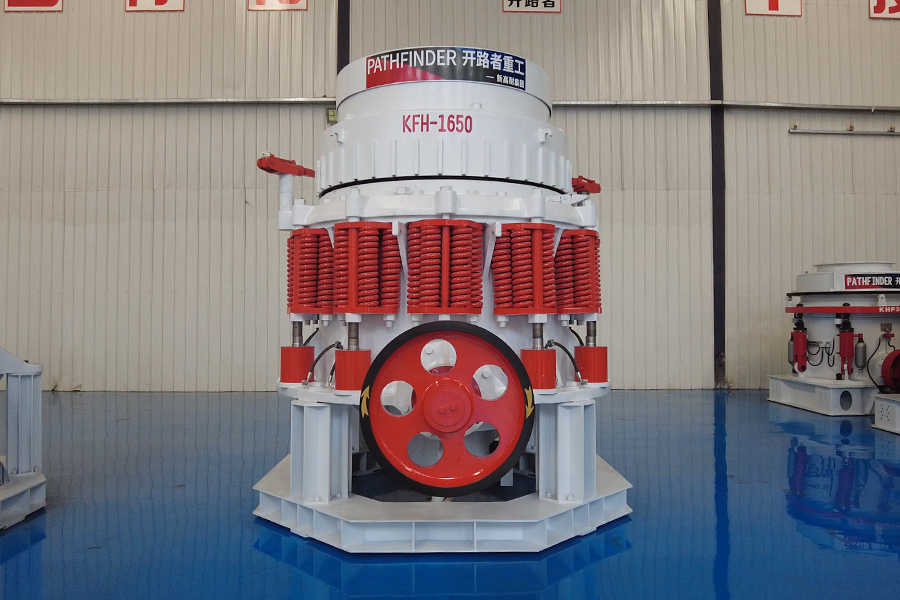

XFH Series Composite Cone Crusher_Stone Crusher

As a advanced hard rock crushing equipment, the X -series composite cone crusher is combined with the advantages of spring cone and hydraulic cone, it is suitable for high -efficiency and meticulous medium and fine operations of various types of hard ore. It has significant advantages such as crushing ratio, high production efficiency, and uniform product size.

Applicable materials

XFH series compound cone crusher is suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

Scope of application

XFH series compound cone crusher is widely used in the secondary and tertiary crushing links of materials in mining, chemical industry, roads and bridges, construction and other fields.

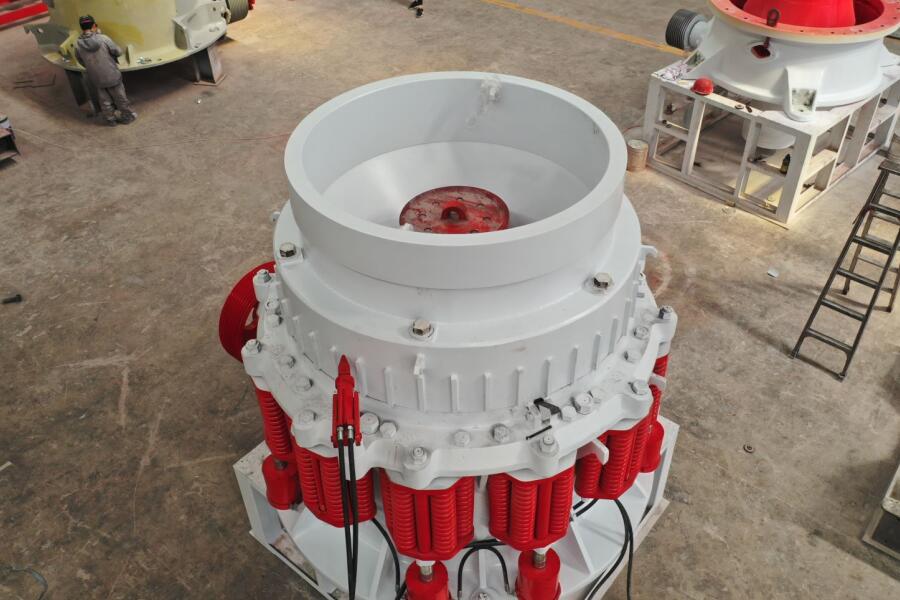

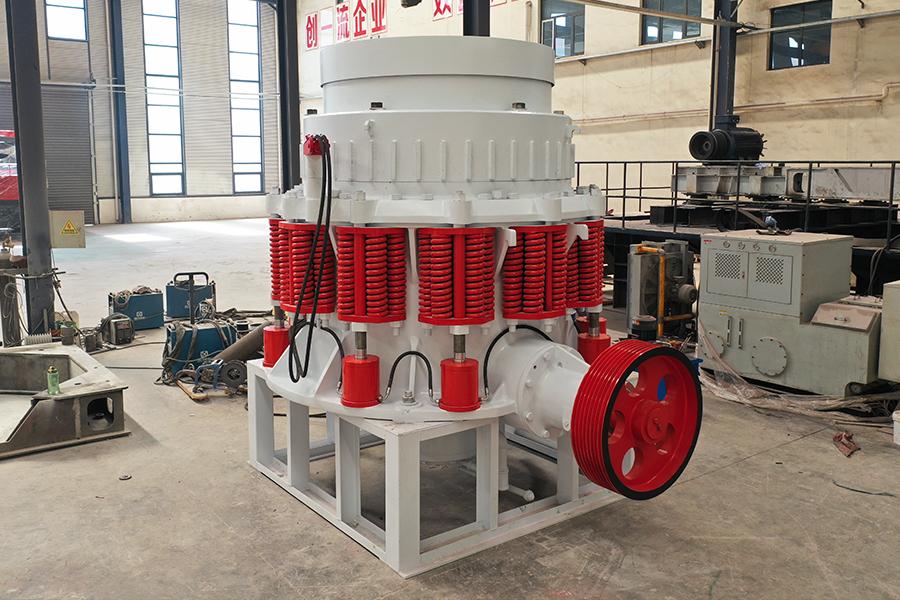

Internal Structure

It is mainly composed of a rack, fixed cone assembly, moving cone assembly, spring mechanism, bowl-shaped shaft frame, transmission device, electrical s-ystem, thin oil lubrication s-ystem, hydraulic chamber s-ystem

1、THE FUSELAGE HAS HIGH STRENGTH

The fuselage has high strength, and the accessories are finished and durable; labyrinth combination, grease seal, good dustproof effect.

2、HIGH PROCESSING CAPACITY

Semi-automatic hydraulic adjustment of the discharge port, fast and convenient; special crushing chamber design, effectively improve production capacity.

3、LOW FAILURE RATE

The replacement of the movable and fixed tooth plates does not require fillers, which is convenient and quick, and can be quickly put into production and operation; the fixed cone is mechanically locked by a swing bolt, which is easy to operate and has a low failure rate.

4、REASONABLE DESIGN

The lubricating oil circulating cooling system is designed according to the actual situation of the customer, and the temperature control system and pressure control system are convenient for customers to master and operate.

5、RELIABLE OPERATION

Over-iron protection, safe and reliable; automatic cavity cleaning, fast and time-saving; bevel gear transmission, firm and stable.

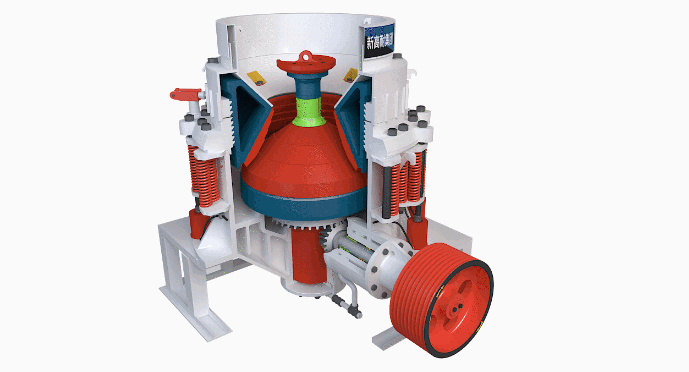

This crusher has a layered crushing characteristics. during the work, the motor drives the eccentric rotation through the transmission device, under the force of the eccentric axis sleeve, the moving cone is rotating and swinging,the dynamic cone's section of the cone becomes a crushing cavity, when the dynamic cone leaves the section, the material that has been crushed to the granular material where the granularity is required to fall under its own gravity, and it is discharged from the bottom of the cone.

XFH Series Composite Cone Crusher WORKING PRINCIPLE

Model	Type	Offset value (mm)	Max feeding size (mm)	Discharge port adjustment range (mm)	Capacity (tph)	Main motor power (kw)	Weight (t)
XFH1650C-D	Coarsely	34	300	22-65	265-610	250	35
XFH1650Z-D	Medium	34	240	19-65	240-610	250	35
XFH1650S-X	Finely	28	130	16-40	200-320	250	35
XFH1400C-D	Coarsely	30	235	19-65	210-530	220	25
XFH1400Z-X	Medium	25	180	16-50	180-475	220	25
XFH1400S-X	Finely	25	80	13-30	150-250	220	25
XFH1200C-D	Coarsely	22	200	16-51	150-390	132	16
XFH1200Z-D	Medium	22	150	13-40	115-245	132	16
XFH1200S-X	Finely	15	90	10-25	80-170	132	16
