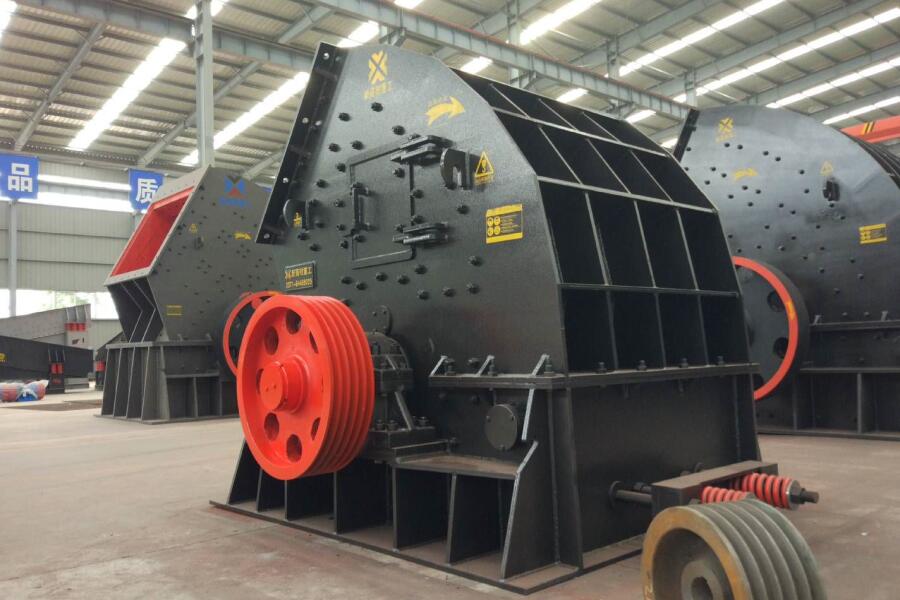

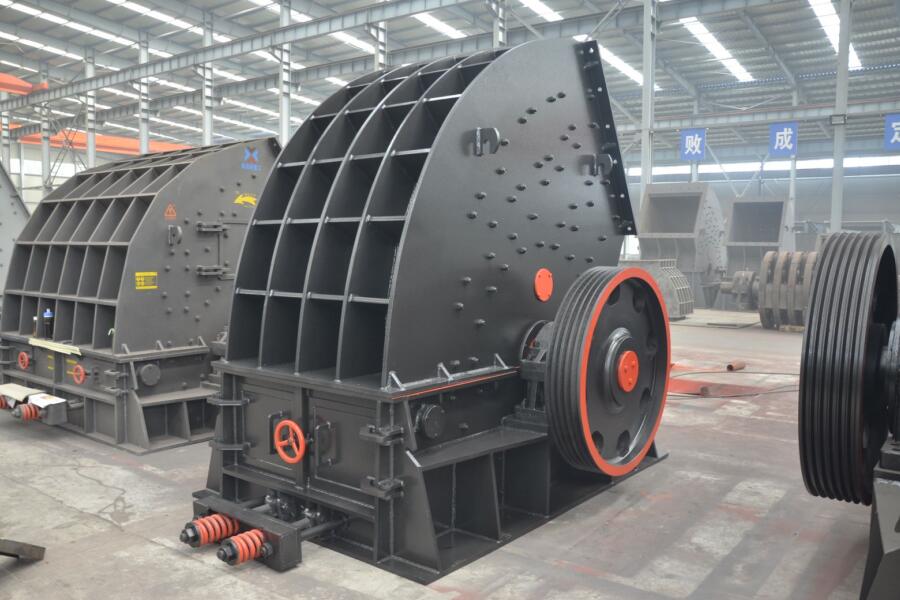

XGN-Q series light hammer crusher

XGN-Q series light hammer crusher

XGN-Q series light hammer crusher
Feeding Size
≤1000mm Feeding Size
Processing Capacity
50-1600t/h Processing Capacity

PRODUCT INTRODUCTION

The XGN-Q series light hammer crusher is an optimization of the traditional hammer break, none Rib strips design is suitable for handling low hardness and brittle materials. It is applied to many industries and is favored by mining investors.


Applicable materials:It is suitable for crushing brittle materials such as limestone and bluestone with crushing compressive strength ≤ 150MPA and calcium content ≥ 40

Scope of application:Widely used in crushing operations of medium hard materials in mines, gravel fields, cement plants, construction, metallurgy and other industries.

Internal Structure:It is mainly composed of the case, rotor, spindle, hammer head, lining, etc.

XGN-Q0808,XGN-Q1012,XGN-Q1216,XGN-Q1622,XGN-Q2026

Best selling machine model

FEATURES

1、None Rib strips model

None Rib strips design,it effectively avoids the phenomenon that the traditional hammer crusher is easy to be blocked by materials, and it can also crush wet materials with high water content, and the production will not be stuck in rainy days.

2、Low powder yield

The design of the movable impact frame is reasonable, which can flexibly adjust the size of the output material and control the content of stone powder in the finished material to be low.

3、The hammer head is more wear-resistant

The hammer head adopts chromium-containing alloy compound casting process, which has better impact resistance and wear resistance.

4、High quality components

There are wear-resistant retaining rings on the vulnerable parts of the outer ring of the rotor, which are wear-resistant and easy to replace; the hammer plate uses Q3556 high -strength structure steel, and the hammer shaft holes are embedded with alloy steel shaft sleeves to effectively extend the service life of the rotor.

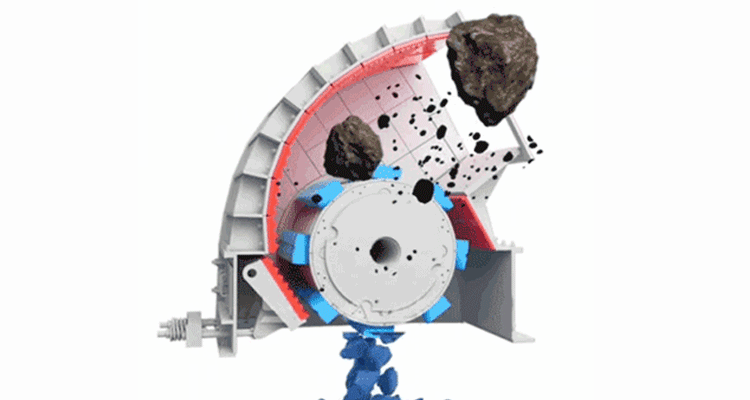

The motor drives the rotor at a high -speed rotation in the crushing cavity. The material is given to the machine from the upper part, the grain level of the sieved size of the crushing material is discharged through the sieve plate, and the thick particles greater than the size of the sieve holes are stranded on the sieve plate to continue to be hit and grinded by the hammer,finally Adjust the gap to adjust.

XGN-Q series light hammer crusher WORKING PRINCIPLE
Model

Rotor

diameter*length

(mm)

Feed port

width*length

(mm)

Feed size

(mm)

Capacity

(tph)

Motor power

(kw)

Dimensions

(mm)

XGN-Q0706700*570618*510≤40050-70751950*1340*1480
XGN-Q0808800*750780*610≤50080-1001322280*1790*1670
XGN-Q0910900*10001070*750≤600150-200110*22600*2200*1940
XGN-Q10121000*11801255*810≤650250-300132*22800*2310*2210
XGN-Q12131200*12801350*920≤750300-350160*22970*2580*2510
XGN-Q12161200*15901530*920≤750400-500200*23070*2840*2580
XGN-Q12201220*19502000*920≤750500-600220*23080*3380*2580
XGN-Q16221620*22002200*1000≤900600-800250*23695*3250*3450
XGN-Q18251840*23902390*1050≤900800-12008004050*4100*3400
XGN-Q20262000*24901170*2550≤10001200-160010004490*4260*3725
