MQY Series Ball Mill

Get Price

≤20mm Feeding Size

10-248t/h Processing Capacity

PRODUCT INTRODUCTION

Ball mill is one of the high-fine grinding machines widely used in the metal ore crushing and grinding industry. It is the key equipment for crushing materials after crushing. It is suitable for grinding various hard materials in the mineral processing industry and is an important powder in the mineral processing industry. grinding equipment.

Applicable materials

Ball mill is suitable for dry or wet grinding of limestone, spodumene, iron ore, granite and other ores and other grindable materials.

Scope of application

Ball mill is widely used in grinding processes in various fields such as mining, building materials, ceramics, ore dressing.

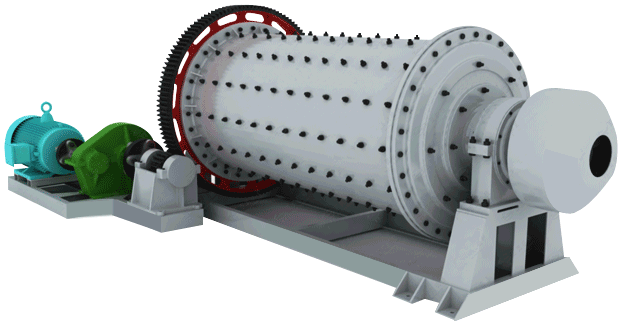

Internal Structure

It is mainly composed of components such as cylindrical cylindrical, end cover, bearing, grinding body and transmission.

1、Energy saving and low consumption

Self-aligning double-row radial spherical roller bearings are adopted, which has low running resistance, remarkable energy-saving effect, and can be used both dry and wet.

2、High yield and efficient

End cover structure, large diameter inlet and outlet, large processing capacity; reasonable steel ball gradation, good crushing effect.

3、Wear -resistant and durable

The wearing parts are all cast with high-quality materials, and the casting process is first-class, which has good wear resistance and effectively reduces the cost of use.

4、Stable operation

Separate installation, simple and easy to operate; there is no inertial impact in the crushing process, and the equipment runs smoothly.

WORKING PRINCIPLE

The material is uniformly entered the grinding machine's first warehouse by the air -in -the -axis spiral through the material, different specifications of steel balls in the interior, the cylinder rotation generates centrifugal force to bring the steel ball to a certain height, which has a attack and grinding effect on the material, after the material reaches rough grinding in the first warehouse, it enters the second warehouse through the single -layer compartment board,the warehouse is inlaid with a flat lining plate with steel ball inside, further grind the material, and the powder is discharged through the unloading plate to complete the powder grinding operation.

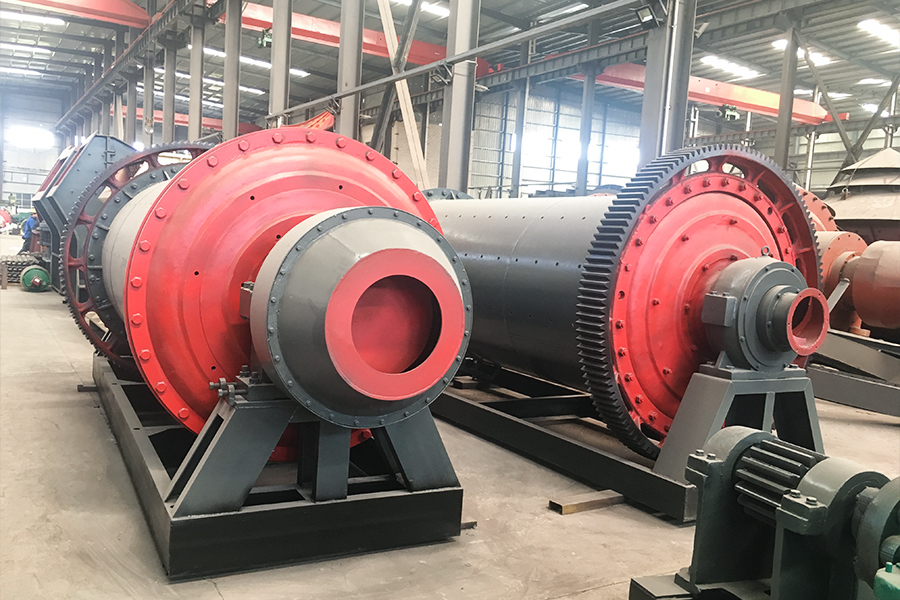

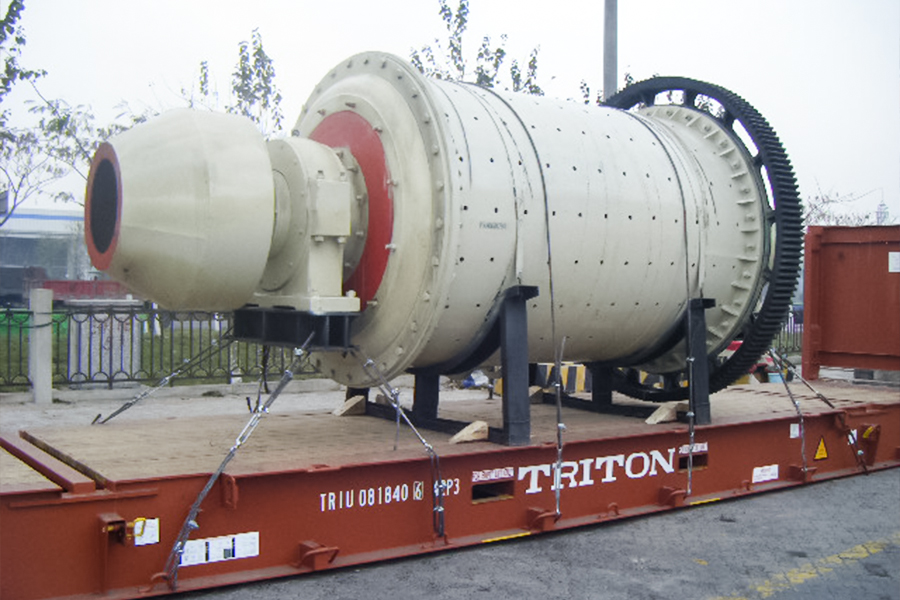

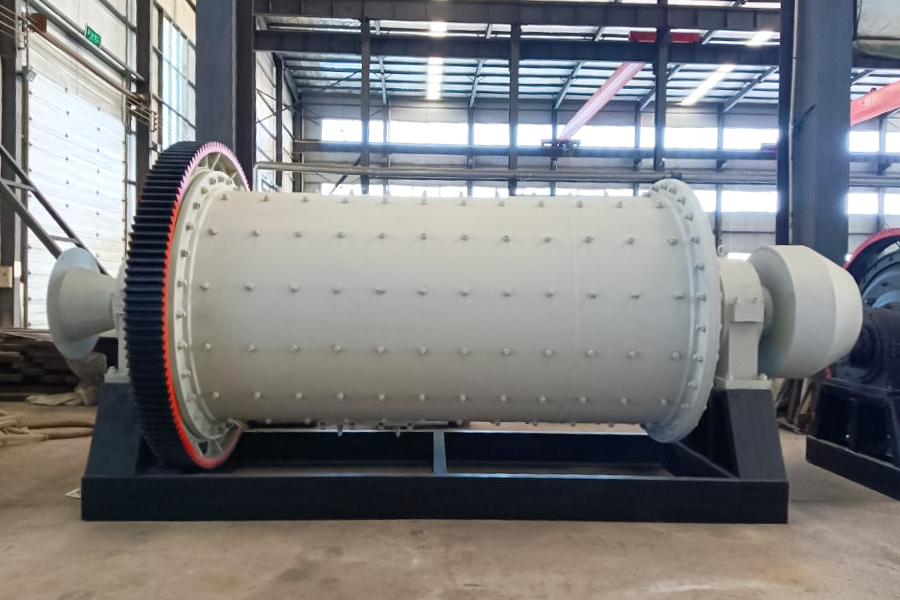

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Cylinder size (mm)	Feed size (mm)	Discharge size (mm)	Motor power (kw)	Capacity (tph)
MQY2400*5000	Φ2400*5000	≤20	0.074-0.4	320	10-70
MQY2700*4000	Φ2700*4000	≤20	0.074-0.4	400	22-80
MQY3200*4500	Φ3200*4500	≤20	0.074-0.4	630	-
MQY3600*5000	Φ3600*5000	≤20	0.074-0.4	1250	-
MQY3600*6000	Φ3600*6000	≤20	0.074-0.4	1250	-
MQY4000*6000	Φ4000*6000	≤20	0.074-0.4	1500	65-248
