LDMC Series Pulse Bag Filter

Get Price

0-336400m³/h Processing Capacity

PRODUCT INTRODUCTION

The new pulse bag filter improved by Xin Gao Nai Group retains the advantages of high purification efficiency, large gas processing capacity, and long filter bag life，solved the problem of open air placement and low pressure of compressed air source, today, it is widely used in the purification of dusty gas and the recovery of materials in mining, metallurgy, building materials and other industries.

Applicable materials

Pulse bag dust collector is suitable for the purification of various dust-containing gases and the recovery of materials.

Scope of application

Pulse bag dust collector is widely used in the centralized treatment and purification of smoke and dust in mining, metallurgy, building materials, chemical industry and other industries.

Internal Structure

It is mainly composed of components such as the upper box , the ash bucket, the pulse clearing s ystem, the filter bag, the skeleton of the filter bag, the inlet air outlet, and the gray removal device.

1、The airflow resistance is small

The inlet and outlet air ducts are compactly arranged, and the airflow resistance is small.

2、High dust removal efficiency

Adopt the pulse jet dust cleaning technology of chamber-stop wind, high dust removal efficiency, effectively prolonging the cleaning cycle, in turn, the fatigue degree of filter bags and pulse valves is reduced, and the service life of filter bags and valves is improved.

3、Operation is convenient

The keel of the filter bag adopts polygonal shape, and the filter bag has a long service life; The upper bag-drawing method is adopted, and the bag changing operation is convenient.

4、AIRTIGHTNESS

The box body adopts airtight design, and the inspection door is made of high-quality sealing materials. During the production process, kerosene is used to detect leaks, and the air leakage rate is low.

WORKING PRINCIPLE

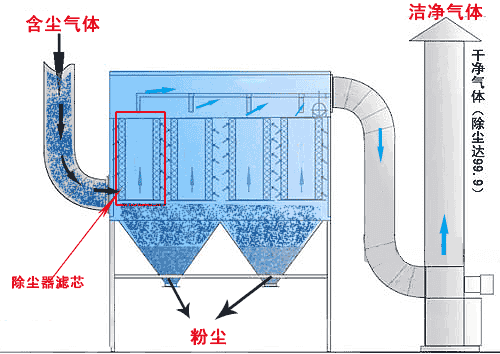

Under the traction of fan power, the internal, dust removal pipes and dust cover in the dust collector form a negative pressure environment, make the dust -containing gas enter the dust collector under pressure difference, the airflow is filtered by the dust removal filter bag, and the dust is left on the surface of the bag, input pulse signals regularly through the PLC controller to enter the pulse valve, the high -pressure air of the compressed gas will be blew on the dust on the surface of the filter bag and collect it in the ash accumulation to achieve the purpose of recycling the dust, the clean gas after treatment was discharged from the chimney through the dusty fan.

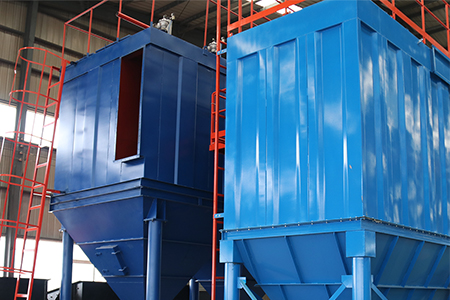

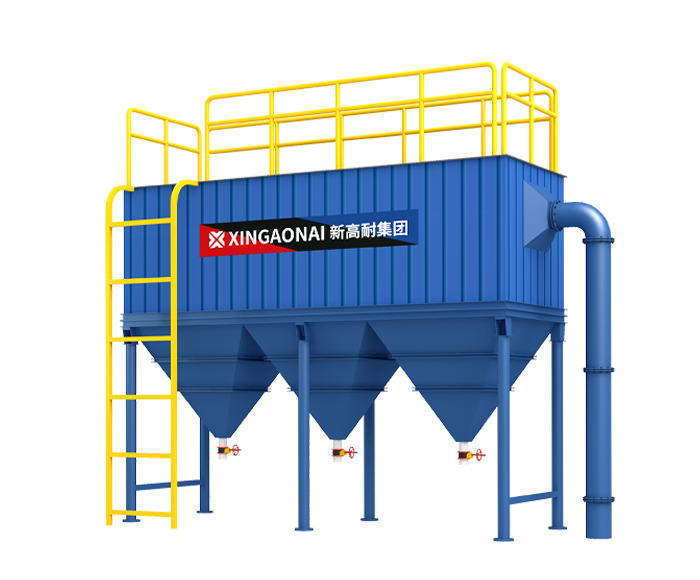

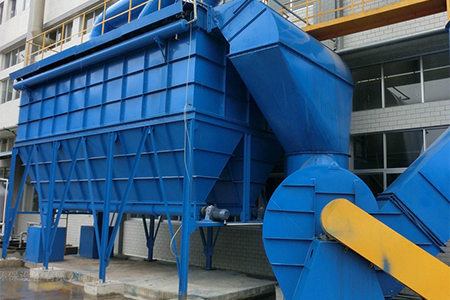

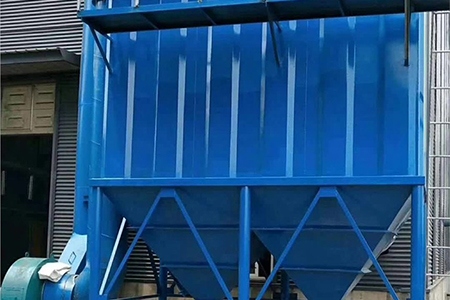

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Handling air volume (m³/h)	Entrance concentration (g/Nm³)	Emission concentration (mg/Nm³)	Pressure loss (Pa)	Shell pressure (Pa)	Number of rooms	Number of filter bags	Filter area (㎡)	Weight (kg)
LDMC64-8	36800	＜1200	≤10	1470-1770	-5000	8	512	512	14980
LDMC96-4	27600	＜1200	≤10	1470-1770	-5000	4	384	384	9622
LDMC96-5	34500	＜1200	≤10	1470-1770	-5000	5	480	480	12833
LDMC96-6	41400	＜1200	≤10	1470-1770	-5000	6	576	576	14223
LDMC96-7	48300	＜1200	≤10	1470-1770	-5000	7	672	672	15042
LDMC96-8	55200	＜1200	≤10	1470-1770	-5000	8	768	768	16524
LDMC96-9	62100	＜1200	≤10	1470-1770	-5000	9	864	864	17905
LDMC96-2*5	69000	＜1200	≤10	1470-1770	-5000	10	960	960	23439
LDMC96-2*6	82800	＜1200	≤10	1470-1770	-5000	12	1152	960	25200
LDMC96-2*7	96600	＜1200	≤10	1470-1770	-5000	14	1344	960	29400
LDMC96-2*8	110400	＜1200	≤10	1470-1770	-5000	16	1536	960	33600
LDMC96-2*9	124200	＜1200	≤10	1470-1770	-5000	18	1728	960	37800
LDMC96-2*10	138000	＜1200	≤10	1470-1770	-5000	20	1920	960	42000

Model	Handling air volume (m³/h)	Entrance concentration (g/Nm³)	Emission concentration (mg/Nm³)	Pressure loss (Pa)	Shell pressure (Pa)	Number of rooms	Number of filter bags	Filter area (㎡)	Weight (kg)
LDMC128-6	67300	＜1300	≤10	1470-1770	-6800	6	768	936	20224
LDMC128-9	100900	＜1300	≤10	1470-1770	-6800	9	1152	1406	26400
LDMC128-10	112100	＜1300	≤10	1470-1770	-6800	10	1280	1561	31732
LDMC128-2*6	134560	＜1300	≤10	1470-1770	-6800	12	1536	1874	36000
LDMC128-2*7	157000	＜1300	≤10	1470-1770	-6800	14	1792	2186	43900
LDMC128-2*8	179400	＜1300	≤10	1470-1770	-6800	16	2048	2498	50000
LDMC128-2*9	201900	＜1300	≤10	1470-1770	-6800	18	2304	2810	55400
LDMC128-2*10	224300	＜1300	≤10	1470-1770	-6800	20	2560	3123	60000
LDMC128-2*11	247600	＜1300	≤10	1470-1770	-6800	22	2816	3435	65400
LDMC128-2*12	269100	＜1300	≤10	1470-1770	-6800	24	3072	3748	72000
LDMC128-2*13	291600	＜1300	≤10	1470-1770	-6800	26	3328	4060	78000
LDMC128-2*14	314000	＜1300	≤10	1470-1770	-6800	28	3584	4372	84000
LDMC128-2*15	336400	＜1300	≤10	1470-1770	-6800	30	3840	4685	90000
