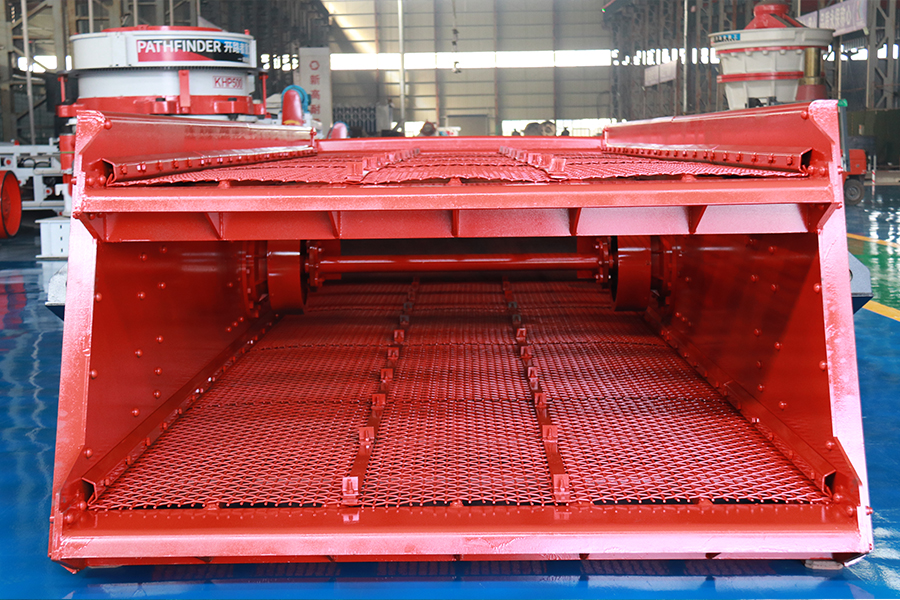

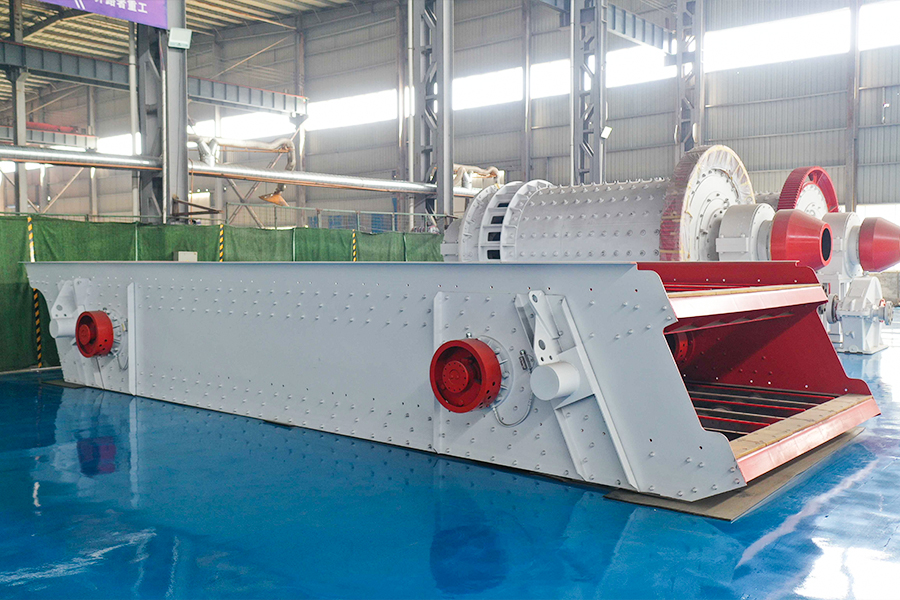

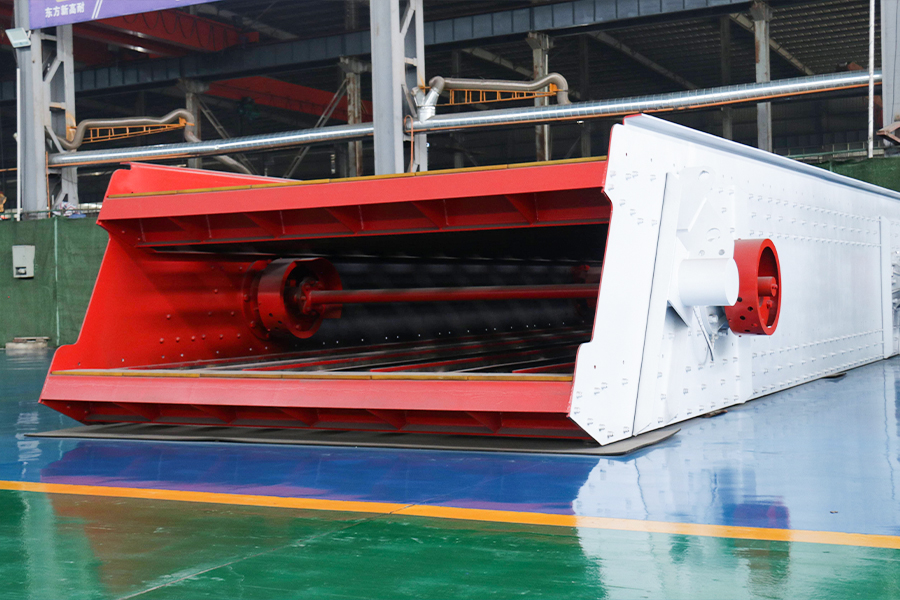

The YKZ series vibration sieve is called the medium vibration screen. It is a high -intensity, large excitement round vibration sieve developed by our company's combination of international vibration screen manufacturing technology, it has a significant advantage of great processing capacity and good grading effect,it is a key screening equipment in various industrial production,it is especially suitable for granular operations such as gravel, coal, ore, and chemical raw materials.
Applicable materials:YKZ series vibrating screen, commonly known as medium vibrating screen, is suitable for screening materials such as limestone, granite, basalt, non-ferrous metal ores, etc.
Scope of application:YKZ series vibrating screen is a large excitation force vibrating screen, which is widely used in the screening process of sand and gravel aggregates, metal mines, coal, chemical industry and other fields.
Internal Structure:It is mainly composed of vibration sources, sieve, vibration reduction device and base.
2ZXS10400,4YKZ3080,4YKZ2460
Best selling machine model
YKZ series circular vibrating screen is to utilize the electric motor to drive the exciter to rotate through the tire-type coupling, and force the screen body to make periodic reciprocating vibration equipment. The materials continuously do bouncing and tumbling movement on the inclined screen surface, Through repeated comparison with the sieve holes, materials smaller than the size of the sieve through the sieve, materials larger than the size of the sieve holes on the sieve surface, thus completing the screening process, to achieve the purpose of screening.
Model | Sieve mesh layer number | Sieve mesh surface area (㎡) | Vibration amplitude (mm) | Vibration frequency (r/min) | Motor power (kw) | Capacity (tph) |
---|---|---|---|---|---|---|
2YKZ2060 | 2 | 12 | 6-9 | 980 | 30 | 180-280 |
3YKZ2060 | 3 | 12 | 6-9 | 980 | 30 | 180-280 |
4YKZ2060 | 4 | 12 | 6-9 | 980 | 45 | 240-300 |
3YKZ2270 | 3 | 15.4 | 6-9 | 980 | 45 | 240-320 |
4YKZ2270 | 4 | 15.4 | 6-9 | 980 | 45 | 200-260 |
1YKZ2460 | 1 | 14.4 | 6-9 | 970 | 22 | 300-350 |
2YKZ2460 | 2 | 14.4 | 6-9 | 980 | 30 | 240-300 |
3YKZ2460 | 3 | 14.4 | 6-9 | 980 | 30 | 240-300 |
4YKZ2460 | 4 | 14.4 | 6-9 | 980 | 45 | 240-300 |
2YKZ2670 | 2 | 18.2 | 6-9 | 980 | 37 | 280-400 |
3YKZ2670 | 3 | 18.2 | 6-9 | 980 | 45 | 280-400 |
4YKZ2670 | 4 | 18.2 | 6-9 | 990 | 75 | 280-400 |
2YKZ3080 | 2 | 21 | 6-9 | 980 | 37 | 450-550 |
3YKZ3080 | 3 | 21 | 6-9 | 980 | 55 | 400-500 |
4YKZ3080 | 4 | 21 | 6-9 | 990 | 75 | 450-550 |
2ZXS3280 | 2 | 25.6 | 6-9 | 970 | 45*2 | 600-800 |
3ZXS3280 | 3 | 25.6 | 6-9 | 970 | 55*2 | 600-800 |
2ZXS3680 | 2 | 28.8 | 6-9 | 970 | 55*2 | 600-800 |
3ZXS3680 | 3 | 28.8 | 6-9 | 970 | 75*2 | 600-800 |
2ZXS10400 | 2 | 40 | 6-9 | 980 | 75*2 | 800-1000 |
3ZXS10400 | 3 | 40 | 6-9 | 960 | 90*2 | 800-1000 |
